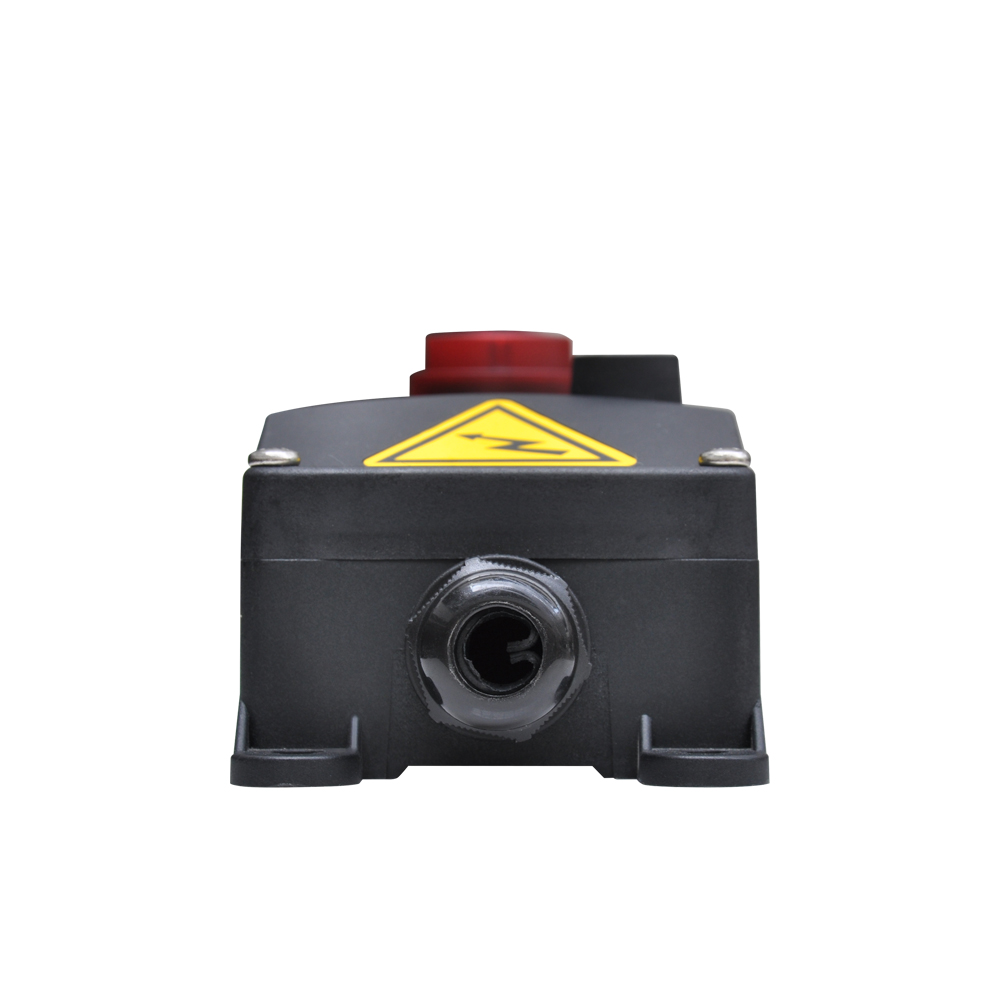

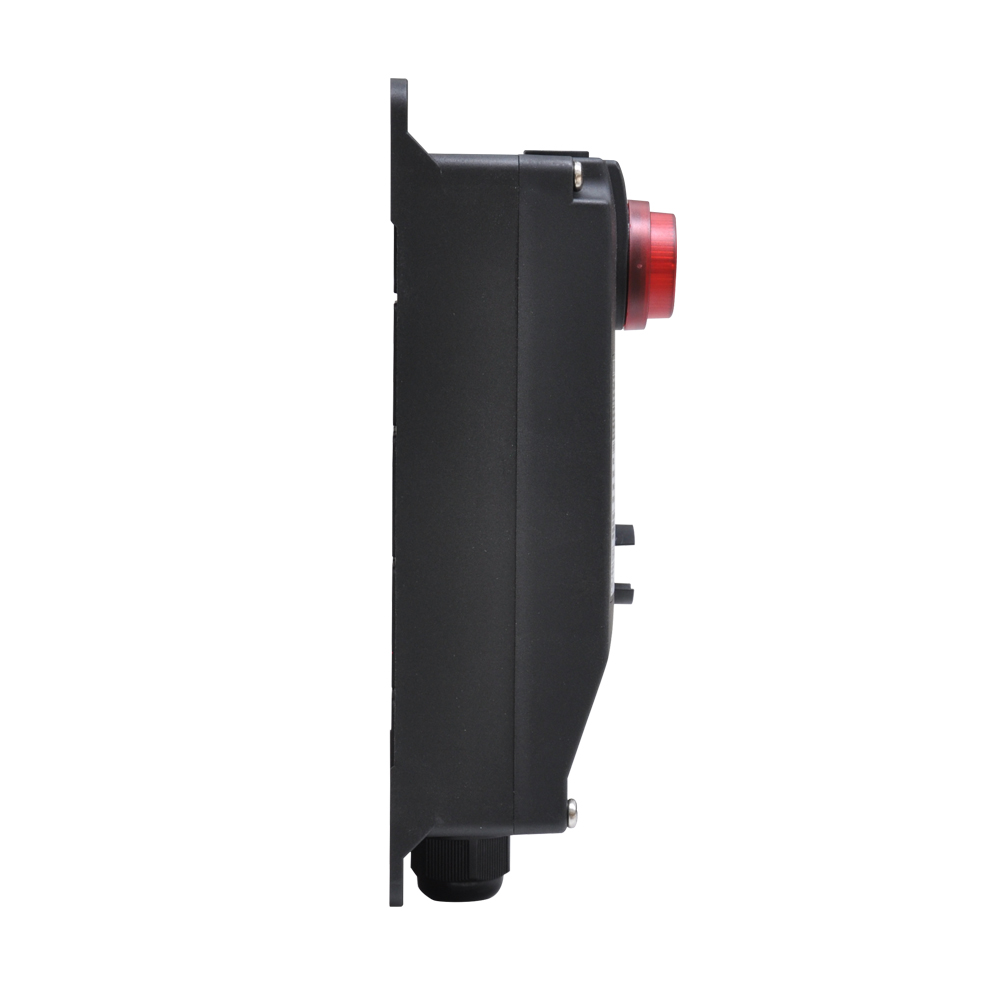

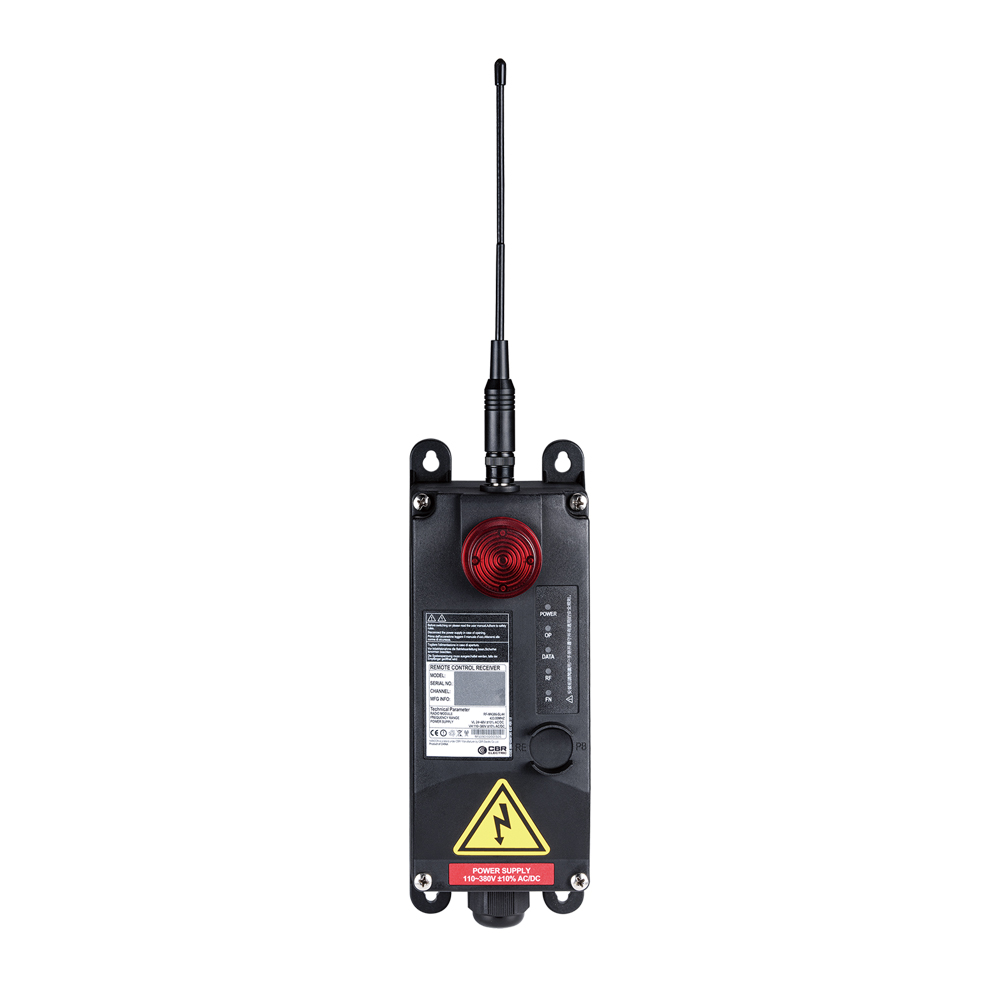

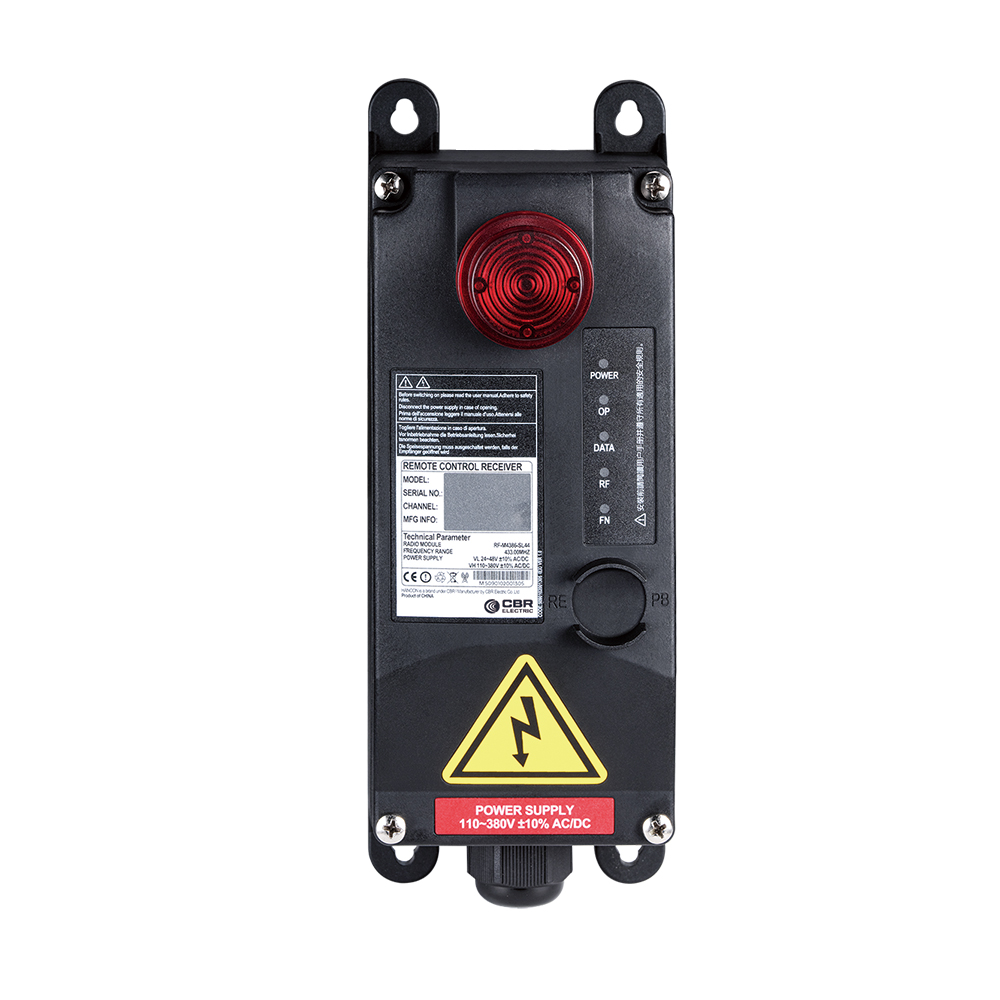

DCR-M
The product series includes multiple receiver models that can meet various usage needs
The design and manufacturing of the receiver ensure its use in extremely harsh environments. After testing, it can operate normally in environments of vibration, vibration, and electromagnetic interference. The shell also has dust, moisture, and waterproof functions.
The receiver software can repeatedly set parameters to provide sufficient convenience for meeting the requirements of end customers.
The number of output signals from the receiver is determined by the transmitter.
Product Features
→ Reliable performance and easy to master
→ Flexible selection methods
→ Terminal connection, standard cable harness
→ Efficient processor with multiple program functions
→ Easy to maintain design
→ Advanced self-diagnosis technology and error logging function
→ According to different national laws and regulations or customer requirements,
→ Set up different frequency series parallel operation, multi control one, one
→ Control multiple, multi control multi operation lock release function
→ The receiver can be expanded or customized according to customer requirements
| Technical Parameters | |
| Model | DCR-M2DDCR-M2F |
| Shell material | High strength engineering plastics |
| Receiver power supply | VL:24~48V ±10% AC/DC VH:110~380V ±10% AC/DC |
| Receiver rated power | ≤5W |
| Receiving sensitivity | -115dBm |
| Receiver fault display | LED display of working/fault status |
| Output method | Fully airtight relay output |
| Relay contact capacity | 8A/250VAC |
| Output interface | Terminal output (including pipe joint) ● HAN16 and 25 heavy-duty connectors can be added non-standard |
| Receiver antenna | Built in (explosion-proof models can be equipped with SMA external antennas) |
| Operating temperature range | -20℃~65℃ |
| Protection level | IP65 |
| Overall dimensions | 233.1mm x 86.3mm x 82.4mm |
| Installation dimensions | 208.8 x 65mm |
| Installation aperture | Φ5mm |
