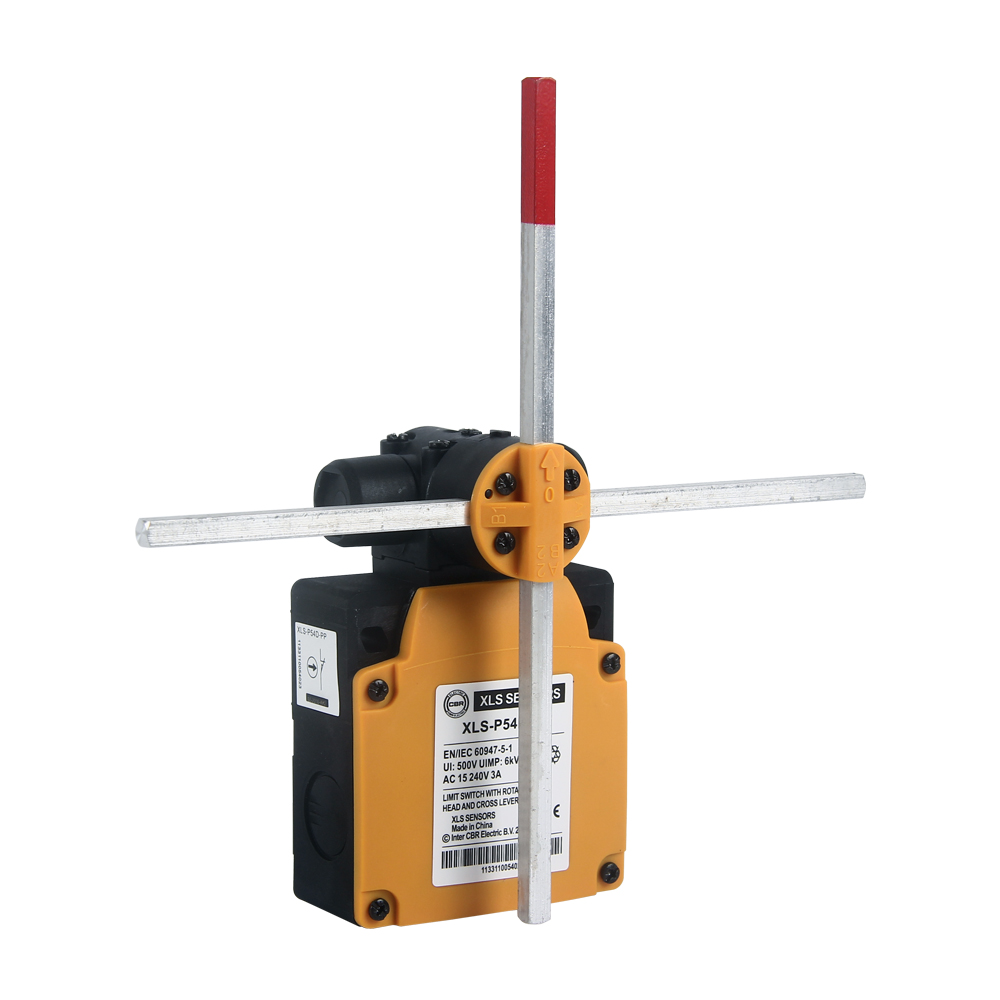

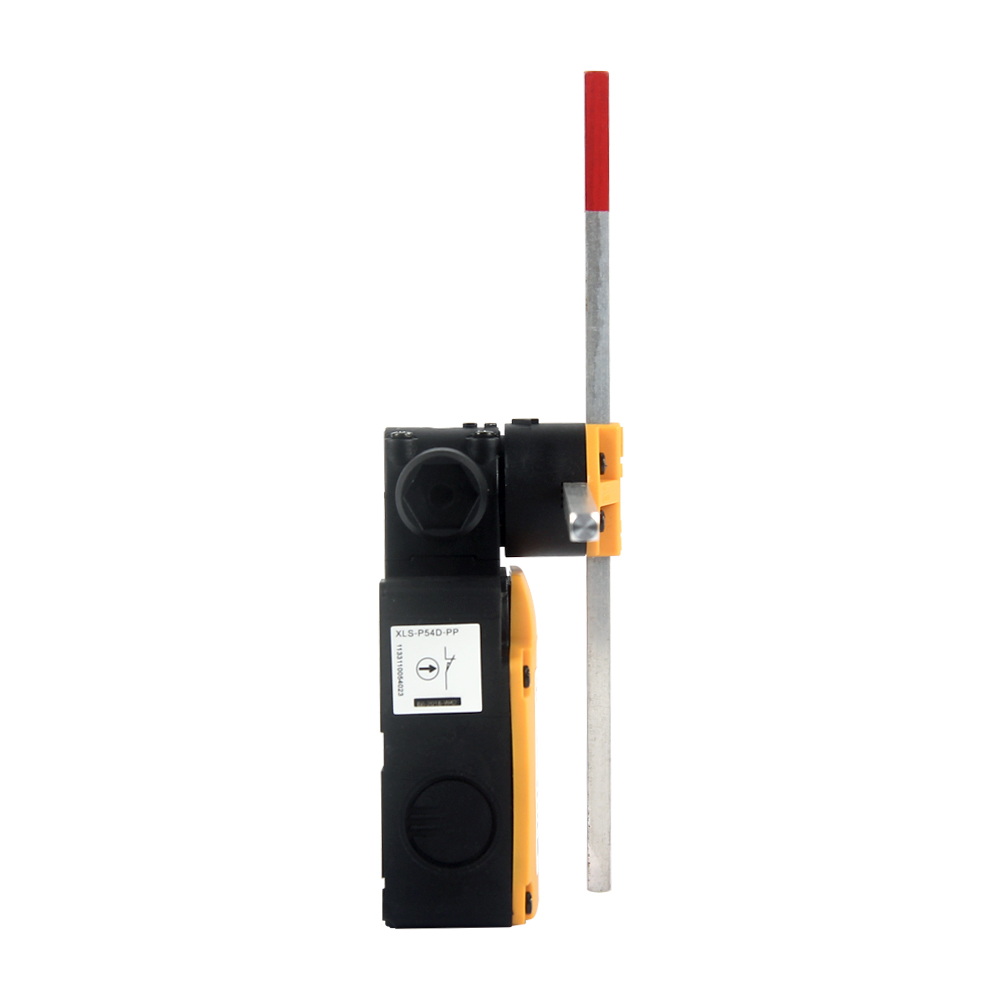

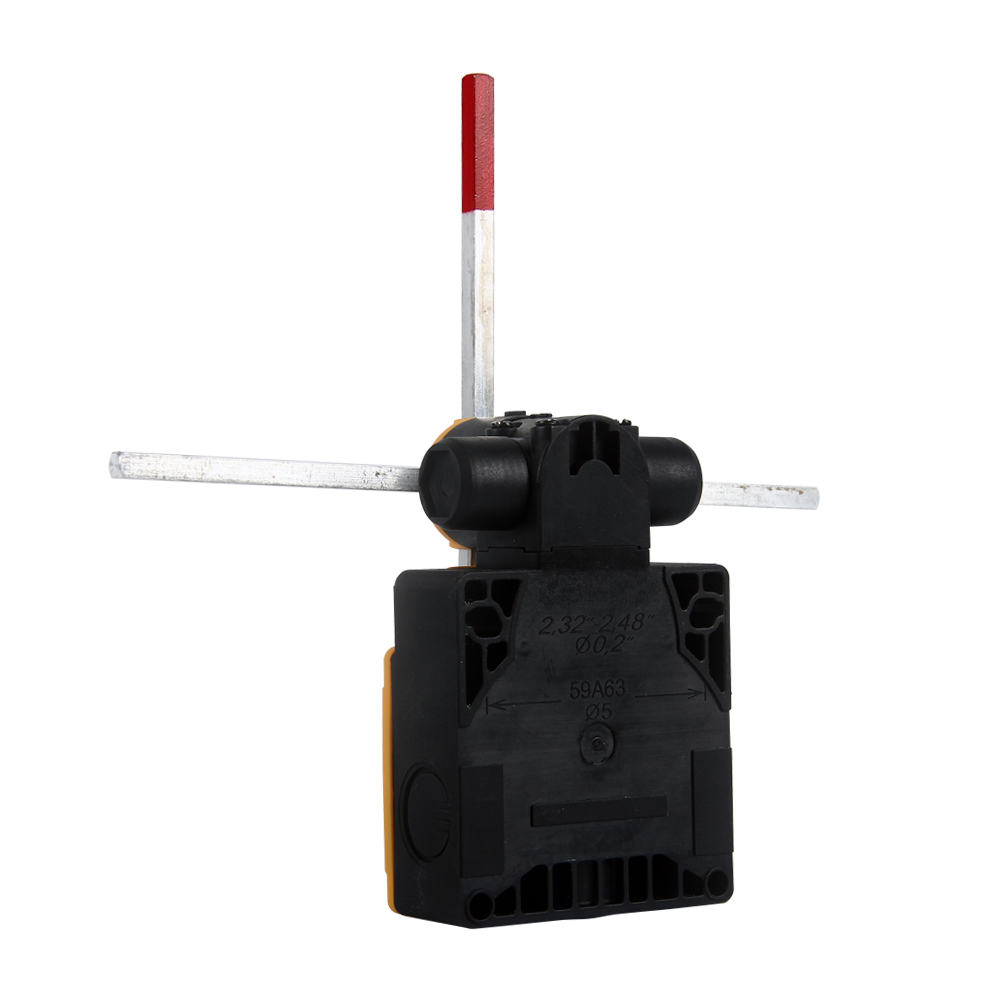

XLS-P54D-PP / XLS-P54D-NP
Limit Switch with Rotating Head and Cross Lever
These devices have been designed to be in compliance with the standards currently in effect: EN/IEC 60947-5-1, EN/IEC 60947-1
| Technical Parameters | |
| The shell material | Glass fiber reinforced nylon |
| Protection level | IP65 |
| Operation head type | Rotating head |
| Method type | Side movement, rotation in both directions |
| Cable specifications | M20*1.5 water-proof joint，Cable diameter 7~13mm |
| Contact number | 4 group |
| Rated insulation voltage（UI） | 500 V Pollution degree 3 conform to EN/IEC 60947-5-1 |
| Rated impact withstand voltage （UIMP） | 6 kV conform to EN/IEC 60947-5-1 |
| Contact wire specified brand | AC-15 （Ue=240V Ie=3A）conform to EN/IEC 60947-5-1 |
